FOODSTUFF 800/1000 L
(asceptic 30/45)
BENEFITS
THE PERFECT 800/1000L FOOD IBC
Intermediate bulk containers adds value to your supply chain by means of durability, life span and easy handling. Our IBC’s are made of the best stainless steel and assembled with high quality components. We assemble our IBC’s according to your demand and our technical support.
SPECIFICATIONS
Type: CUBIC FOOD 1000
Capacity: 1000 l
Approvals: (EG) No. 1935/2004 / PED requirements CE0036
Dimensions: length: 1000 mm / width: 1000 mm / height: 1810 mm
Material: RVS DIN 1.4301 / AISI 304 / OR 316
Weight: Tarra: ca 130 Kg
Gross weight: 1628 Kg
Material thickness: 1.9 mm (UN approved)
Max. pressure: + 0.1 bar
Max. under pressure: - 0.2 bar
Max. density: 1.5 Kg/l
Bottom discharge: 2” BSP DIN50
OUTLET DN 50
• size DN50
• K+H butterfly valve DN 50 type: G-S acc. DIN 11851
• Silicone gasket and plastic blind cap
ADDITIONALS
• Over-pressure valve + 1.5 bar
• CO valve DN 6.5 with protecting cap
VALVES
• K+H butterfly valve DN 25 type: G-S acc. DIN 11851
with silicone gasket and s.s. blind cap with wire
MISCELLANEOUS
• Nozzle DN 100 / DIN 11851 with Silicone gasket, s.s. blind cone and locknut
• Socket G 1” with PTFE gasket, plug and wire
MANHOLE
• Size: DN 400
• screw lid cover (6 swing-bolts)
• silicone-gasket

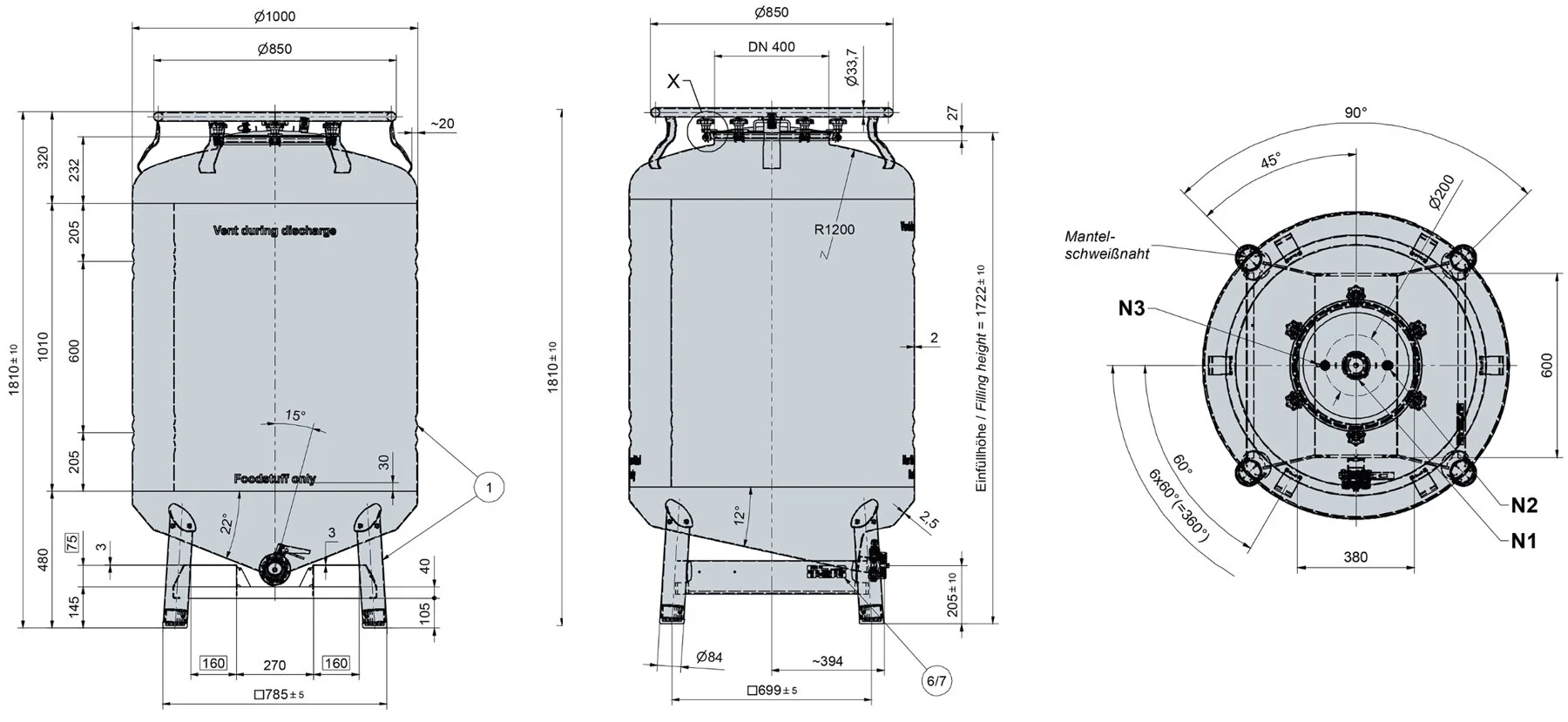

DIMENSIONS
Welding seams:
welding seams pickled and passivated
according to food conformity 1935/2004
Design according to the following description and according to drawing ILZ01551 but without labelling.
Further technical information
foot cap out of polyamide
fork-lift-tunnel on 2 sides
Marking
lettering front & rear
name plate
Foodstuff conformity:
in compliance with directive (EG) No. 1935/2004
CE-approval: declaration of manufacturer and CE-sign acc. to PED requirements CE 0036
Compatibility of tank material with product to be filled-in shall be checked and guaranteed by
operator!
